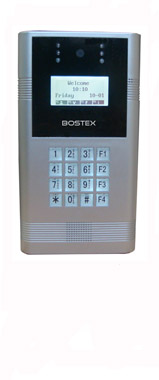

Video Network Controller
BS100V-NT

  Features
  • Take photo when presenting card. To prevent buddy system
  • Built-in WEB server. Monitor live video streaming via internet browser
  • Using 32 bit ARM CPU, operate on embedded LINUX OS, speed up to 200MHz
  • Direct connection to PC via TCP/IP. Connection via TCP/IP converter is not required. Transmission speed up to 100 Mbps
  • Storage Capacity up to 10,000 cards and 100,000 transactions
  • Support ”Toggle Mode”, mainly use for controlling on/off of large-scale electrical equipment
  • Support Anti-passback with confirmation by door open
  • Support Arm/Disarm function
  • Using Flash Memory to store data. Data can be stored up till 10 years without power supply
  • Recoverable up to the latest 100,000 transaction if back end system failure
  • Firmware Online Upgrade via TCP/IP
  • Smart Door Lock capability. When system detect door open and close back, door will automatically lock back.
  • Programmable Time zone / Pin Access Control.
  • CE Certified
Download here for Functional List, Dimension, Technical Specification and Model Selection
